Zhejiang Yonggui Electric Equipment Co., Ltd.







YG1079-2/3pin Series Electrical Connectors

The product can achieve 360-degree full shielding;
The product can realize secondary interlocking and unlocking;
The product has a delayed high voltage interlocking function;
The key positions at both ends adopt 2 different combinations to realize the function of preventing wrong insertion;
The connection between the plug and the receptacle is a straight plug-in locking structure;
High protection level, after the plug and receptacle are matched, the protection level reaches IP67 & IP6K9K.

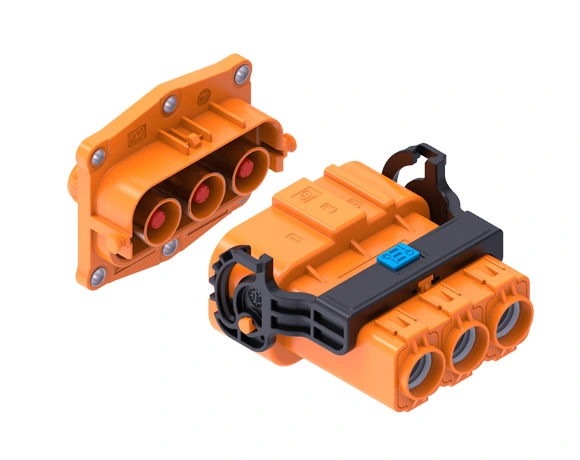

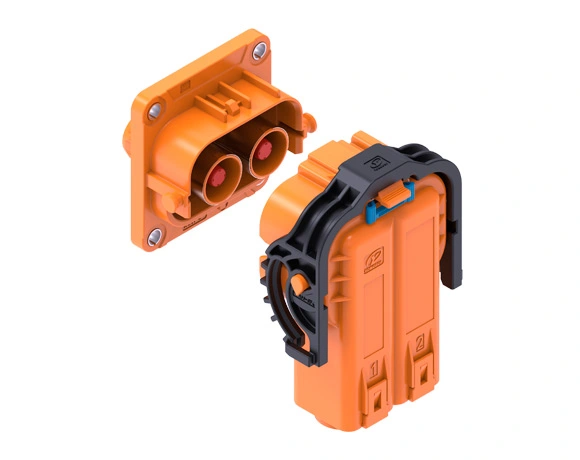

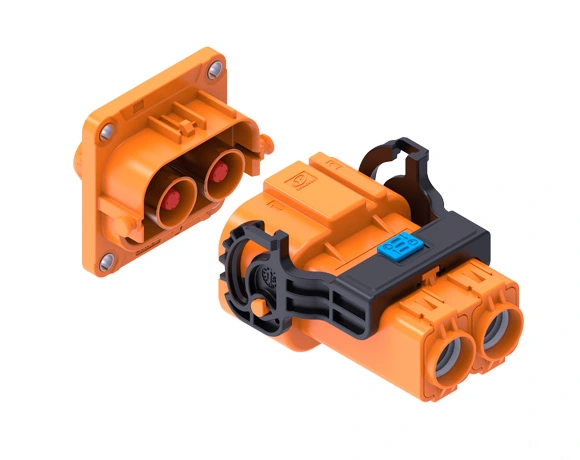

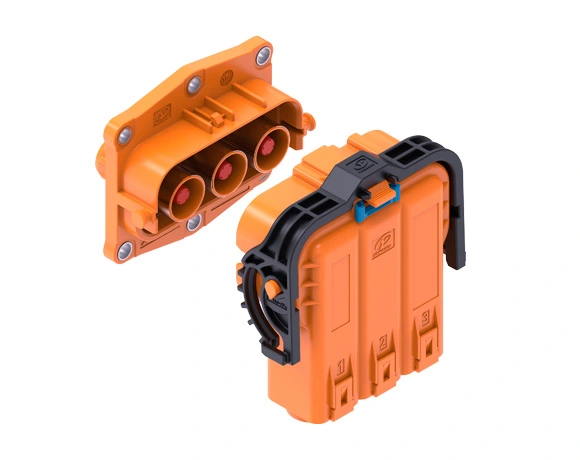

 Get Free Quote  PDF Download  YGC1079-EV-S(3+2)PⅠPlug  YGC1079-EV-P(2+2)RⅠReceptacle  YGC1079-EV-P(3+2)RⅠReceptacle  YGC1079-EV-S(2+2)PⅠPlug

The Details of YG1079-2/3pin Series Electrical Connectors

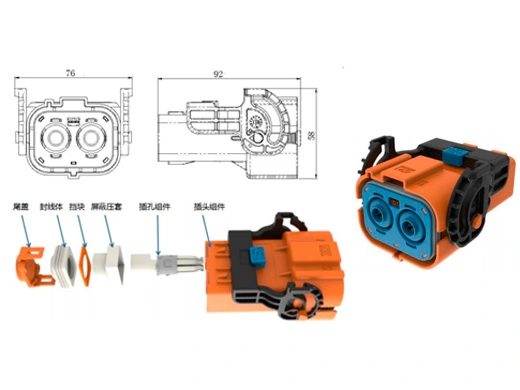

Appearance of two-pin straight plug assembly (tolerance not specified: ±0.5)

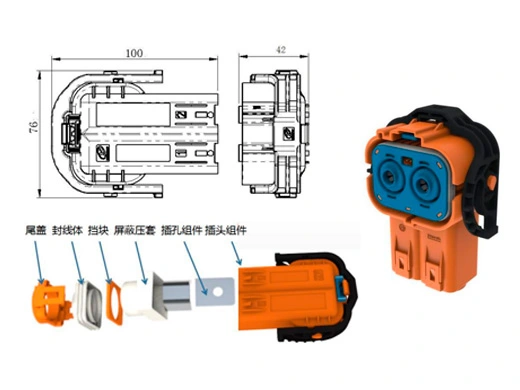

Two-pin angled plug shape (tolerance not specified: ±0.5)

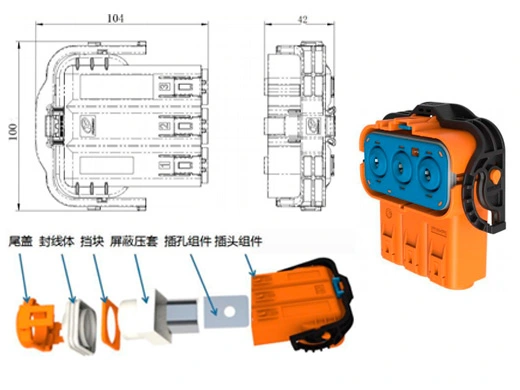

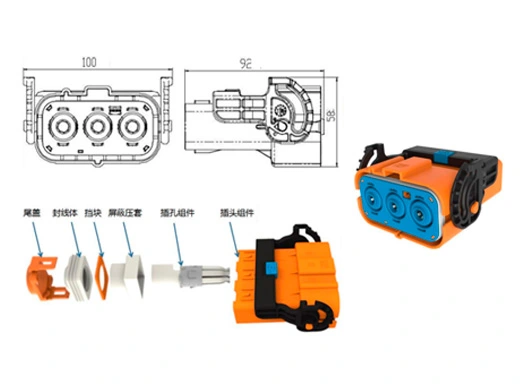

Three-pin straight plug appearance (tolerance not specified: ±0.5)

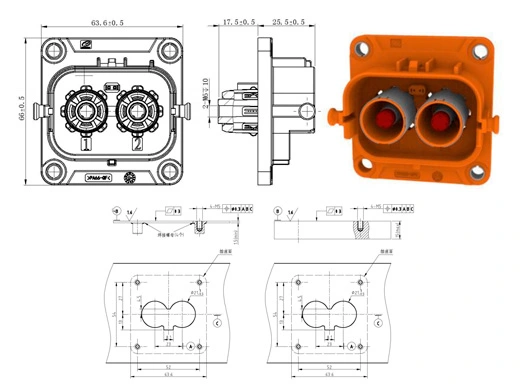

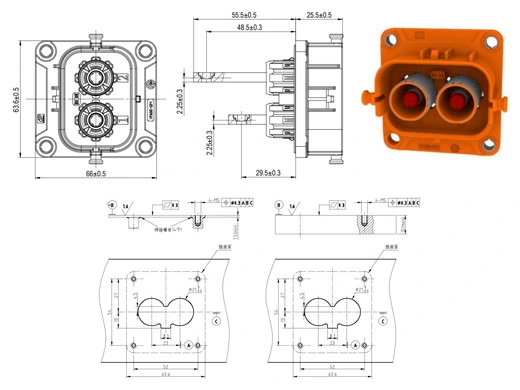

Two-pin receptacle: YGC1079-EV-P(2+2)R/Ⅰ(excluding installation anti-foolproofing)

Three-pin angled plug appearance (tolerance not specified: ±0.5)

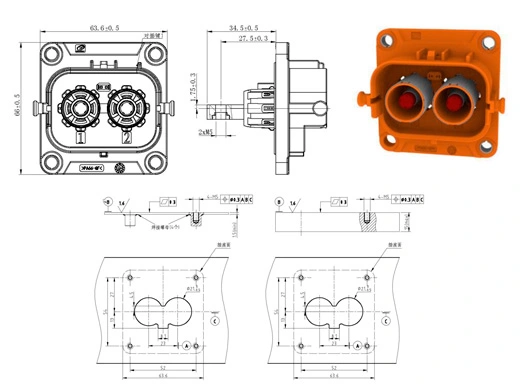

Two-pin receptacle: YGC1079-EV-P(2+2)RB/Ⅰ(excluding installation anti-foolproofing)

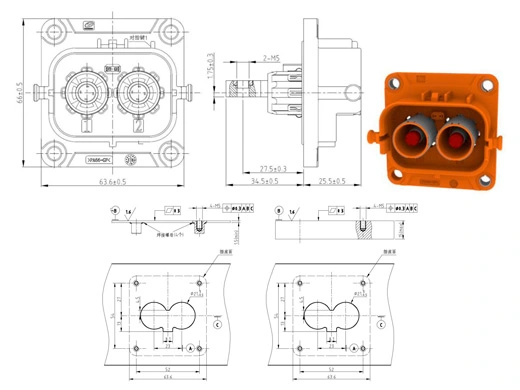

Two-pin receptacle: YGC1079-EV-P(2+2)RD/Ⅰ(excluding installation anti-foolproofing)

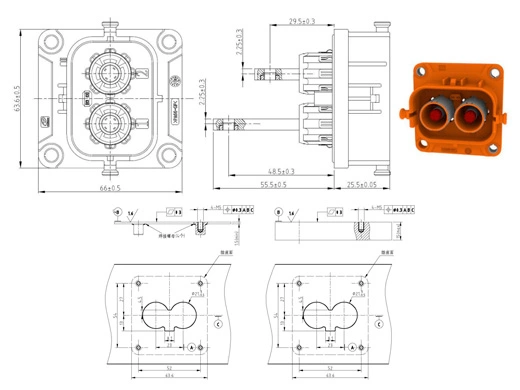

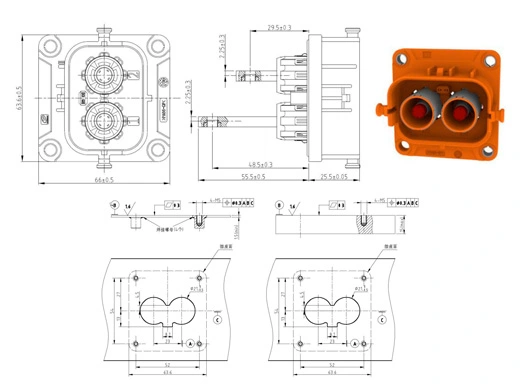

Two-pin receptacle: YGC1079-EV-P(2+2)RF/Ⅰ(excluding installation anti-foolproofing)

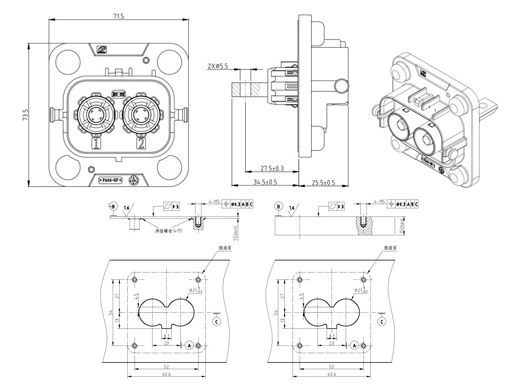

Two-pin receptacle: YGC1079-EV-P(2+2)RG/Ⅰ(excluding installation anti-foolproofing)

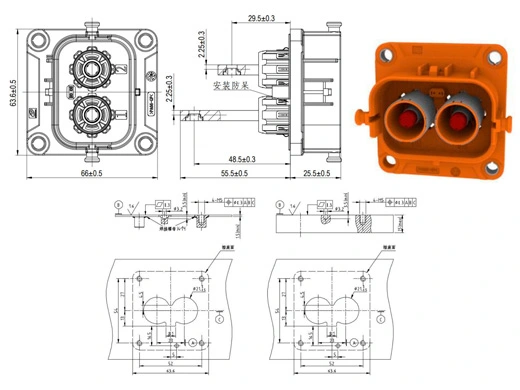

Two-pin receptacle: YGC1079-EV-P(2+2)RP/Ⅰ(excluding installation anti-foolproofing)

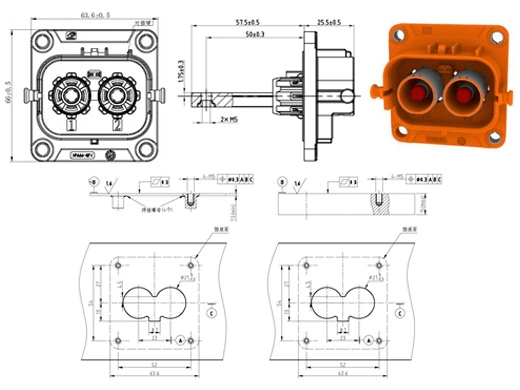

Two-pin receptacle: YGC1079-EV-P(2+2)RT/Ⅰ(excluding installation anti-foolproofing)

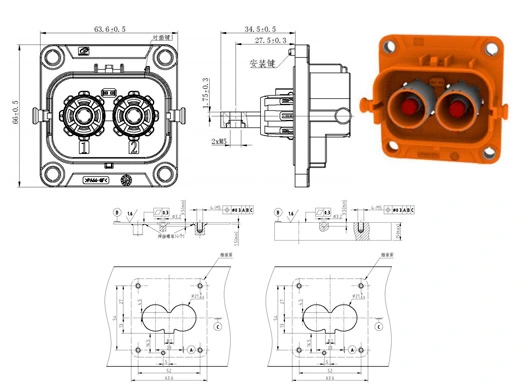

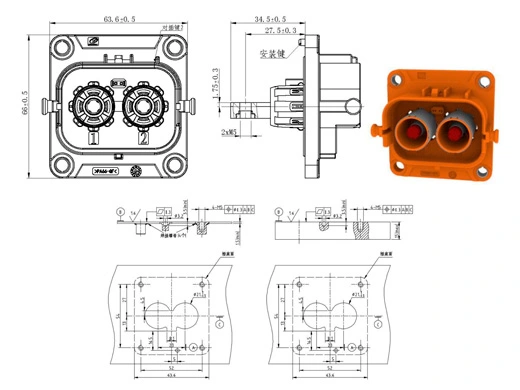

Two-pin receptacle: YGC1079-EV-P(2+2)RC/Ⅰ(including installation anti-foolproofing)

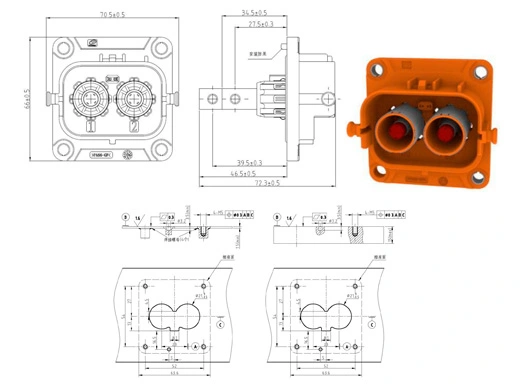

Two-pin receptacle: YGC1079-EV-P(2+2)RJ/Ⅰ(including installation anti-foolproof)

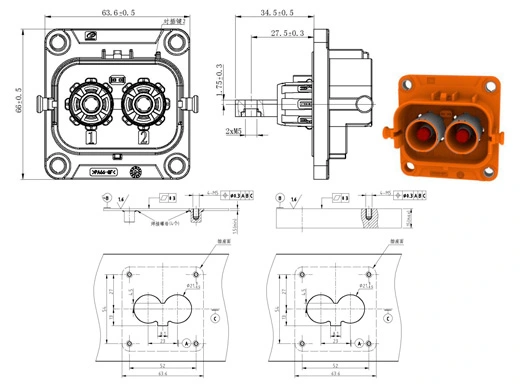

Two-pin receptacle: YGC1079-EV-P(2+2)RB/Ⅱ(excluding installation anti-foolproofing)

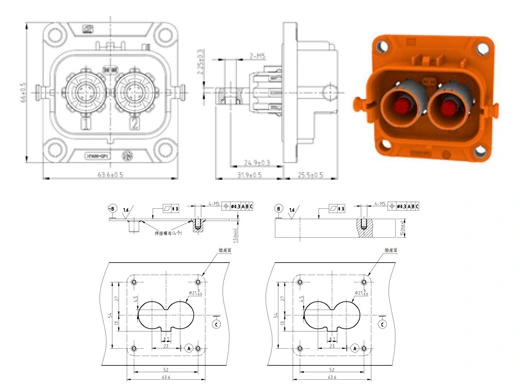

Two-pin receptacle: YGC1079-EV-P(2+2)RE/Ⅱ(excluding installation anti-foolproofing)

Two-pin receptacle: YGC1079-EV-P(2+2)RF/Ⅱ(excluding installation anti-foolproofing)

Two-pin receptacle: YGC1079-EV-P(2+2)RC/Ⅱ(including installation anti-foolproof)

Two-pin receptacle: YGC1079-EV-P(2+2)RP/Ⅱ(including installation anti-foolproof)

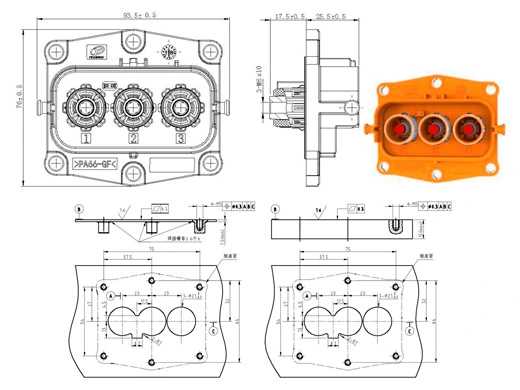

Three-pin receptacle: YGC1079-EV-P(3+2)R/Ⅰ

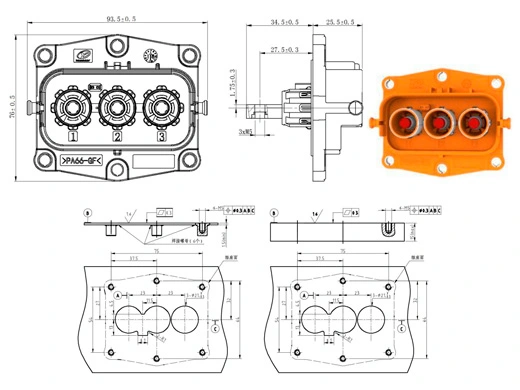

Three-pin receptacle: YGC1079-EV-P(3+2)RB/Ⅰ

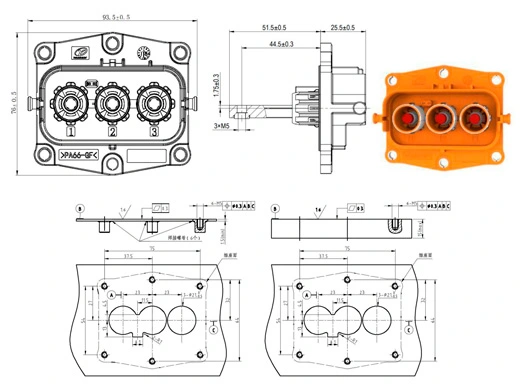

Three-pin receptacle: YGC1079-EV-P(3+2)RC/Ⅰ

Specifications of YG1079-2/3pin Series Electrical Connectors

Ordering Information

No.	Plug name&Part No.	Receptacle name&Part No.	Outlet mode	Receptacle anti-fool key position	Anti-fool-proof key position
1	YGC1079-EV-S(2+2)P/ Ⅰ plug (112010103215) YGC1079-EV-S(2+2)PW/Ⅰ plug (111000100381)	YGC1079-EV-P(2+2)R/Ⅰreceptacle (111000100383)	Internal thread (M6)	None	Type I
		YGC1079-EV-P(2+2)RB/Ⅰ receptacle (112020103571)	Copper busbar (180°)
		YGC1079-EV-P(2+2)RD/Ⅰ receptacle (112020103736)	Copper busbar (180° reverse installation)
		YGC1079-EV-P(2+2)RF/Ⅰreceptacle (112020103777)	Copper busbar (90°)
		YGC1079-EV-P(2+2)RG/Ⅰ receptacle (112020104607)	Copper busbar (180°)
		YGC1079-EV-P(2+2)RP/Ⅰ receptacle (112020107295)	Copper busbar (90°)
		YGC1079-EV-P(2+2)RT/Ⅰreceptacle (112020107704)	Copper busbar (180°)
		YGC1079-EV-P(2+2)RC/Ⅰ receptacle (112020103433)	Copper busbar (180°)	Type 1
		YGC1079-EV-P(2+2)RJ/Ⅰ receptacle (112020105339)	Copper busbar (180° reverse installation)	Type 1
2	YGC1079-EV-S(2+2)P/Ⅱ plug (112010103254) YGC1079-EV-S(2+2)PW/Ⅱ plug (112010103134)	YGC1079-EV-P(2+2)RB/Ⅱ receptacle (112020103572)	Copper busbar (180°)	None	Type II
		YGC1079-EV-P(2+2)RE/Ⅱ receptacle (112020103776)	Copper busbar (180°)
		YGC1079-EV-P(2+2)RF/Ⅱ receptacle (112020107608)	Copper busbar (90°)
		YGC1079-EV-P(2+2)RC/Ⅱ receptacle (112020103434)	Copper busbar (180°)	Type 2
		YGC1079-EV-P(2+2)RP/Ⅱ receptacle (112020107296)	Copper busbar (90°)	Type 2
3	YGC1079-EV-S(3+2)P/ Ⅰplug (112010103214) YGC1079-EV-S(3+2)PW/Ⅰ plug (111000100382)	YGC1079-EV-P(3+2)R/Ⅰreceptacle (111000100384)	Internal thread (M6)	None	Type I
		YGC1079-EV-P(3+2)RB/Ⅰ receptacle (112020103477)	Copper busbar (180°)
		YGC1079-EV-P(3+2)RC/Ⅰ receptacle (112020105338)	Copper busbar (180°)

Ordering Information (Wiring Accessories, Purchased Separately)
90° outlet
No.	Adapter cable	Name	Part No.	Number of packages	Diagram (reference)
1	25mm² shielded cable (13.50± 0.30)	YG1079 Tail Cap	114069803333	All Parts 2 pins with 2 pcs, 3 pins with 3 pcs Purchasing on demand
		YG1079 stopper	114060400224
		YG1063 Sealing wire body-25mm²	114050501135
		YG1063 Shielding Sleeve-25mm²	114029801303
		YG1063 Terminal-25mm²	114020100647
2	35mm² shielded cable (14.50±0.5)	YG1079 Tail Cap	114069803333	All Parts 2 pins with 2 pcs, 3 pins with 3 pcs Purchasing on demand
		YG1079 stopper	114060400224
		YG1063 Sealing wire body-35mm²	114050501134
		YG1063 Shielding Sleeve-35mm²	114039802628
		YG1063 Terminal-35mm²	114020100646
3	50mm² shielded cable (17.50±0.5)	YG1079 Tail Cap	114069803333	All Parts 2 pins with 2 pcs, 3 pins with 3 pcs On-demand purchase
		YG1079 stopper	114060400224
		YG1063 Sealing wire-50mm²	114050501122
		YG1063 Shielding Sleeve-50mm²	114029801291
		YG1063 Terminal-50mm²	114020100535
180° outlet
No.	Adapter cable	Name	Part No.	Number of packages	Diagram (reference)
1	25mm² shielded cable (13.50± 0.30)	YG1079 Tail Cap	114069803333	All Parts 2 pins with 2 pcs, 3 pins with 3 pcs Purchasing on demand
		YG1079 stopper	114060400224
		YG1063 Sealing wire body-25mm²	114050501135
		YG1063 Shielding Sleeve-25mm²	114029801303
		YG1063 straight socket assembly-25mm²	113020601461
2	35mm² shielded cable (14.50±0.5)	YG1079 Tail Cap	114069803333	All Parts 2 pins with 2 pcs, 3 pins with 3 pcs Purchasing on demand
		YG1079 stopper	114060400224
		YG1063 Sealing wire body-35mm²	114050501134
		YG1063 Shielding Sleeve-35mm²	114039802628
		YG1063 straight socket assembly-35mm²	113020601460
3	50mm² shielded cable (17.50±0.5)	YG1079 Tail Cap	114069803333	All Parts 2 pins with 2 pcs, 3 pins with 3 pcs On-demand purchase
		YG1079 stopper	114060400224
		YG1063 Sealing wire-50mm²	114050501122
		YG1063 Shielding Sleeve-50mm²	114029801291
		YG1063 straight socket assembly-50mm²	113020601458
receptacle purchased separately
No.	Adapter cable	Name	Part No.	Number of packages	Diagram (reference)
1	0.5mm² unshielded (1.5/1.8±0.1)	YG939 signal terminal (socket)	501021600128	All Parts 2 pins with 2 pcs, 3 pins with 2 pcs Purchasing on demand	/

Note: If LV216 shielded wire is used for 35mm² and 50mm², the sealing body should be replaced as follows:

Name	Part No.
YG1079-1 Sealing body-35(LV216)	114050501816
YG1079-1 Sealing body-50(LV216)	114050501818

Technical Data

Basic Information
PIN distance	/
Number of pins	2pin, 3pin
Adaptation pinhole	Plug - power socket, signal socket; receptacle - power pin, signal pin
Outlet direction	180°, 90°

Electrical properties
Rated voltage	1000 V (power), 24 V (signal)
Rated current	120A (25mm²), 150A (35mm²), 200A (50mm²)
Insulation resistance	≥5000MΩ (power) ≥1000MΩ (signal) (normal)
Withstand voltage	4000 V (power), 1000 V (signal) (50Hz AC normal)
Contact resistance	≤0.36mΩ
HVI	yes
Electrical continuity between shells/shield contact resistance	/

Mechanical properties
Total pullout force	≤75N
Insertion force	≤75N
Locking force	≥110N
Mechanical life	≥50 times
vibration	/
Shock	/

Environmental resistance
Operating temperature	-40℃～+125℃
Relative humidity	95% (at 40°C)
Salt spray	96h
Protection level	IP67&IP6K9K (header plug-in) \ IPXXB (unmatched state)
Pollution degree	2
Altitude requirements	≤2000m

Material/Coating/Appearance
Case	PA66
Insulator	Plug end: PA66, receptacle end: PA66
Pinhole parts/terminals	Power parts: copper alloy/silver plating, signal parts: copper alloy/silver plating

Standards and Certification
Flame retardant grade	UL94 V-0 (plastic) (except seals)
Environmental requirements	RoHS 2.0
Implementation Standards	QC/T1067.1-2017

Installation Introduction

Special tools
Removal tools	/
Needle feeding tool	/
Crimping tools	/
Other tools	/

Packing/Transportation/Storage

Packaging and storage instructions
Storage requirements	Contact parts (gold-plated, silver-plated) must be stored separately, kept neat, clean and ventilated. The storage environment should be controlled at a humidity of ≤60% and a temperature of 5 ~ 30℃. The reference shelf life is 6 months.
