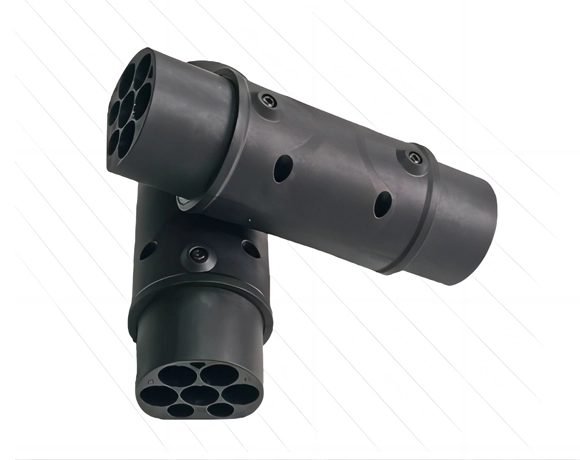

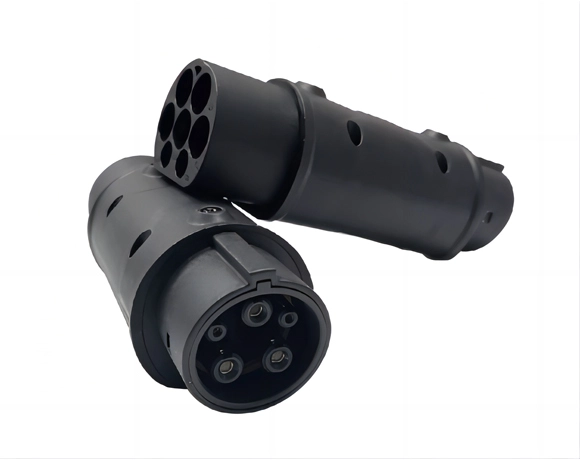

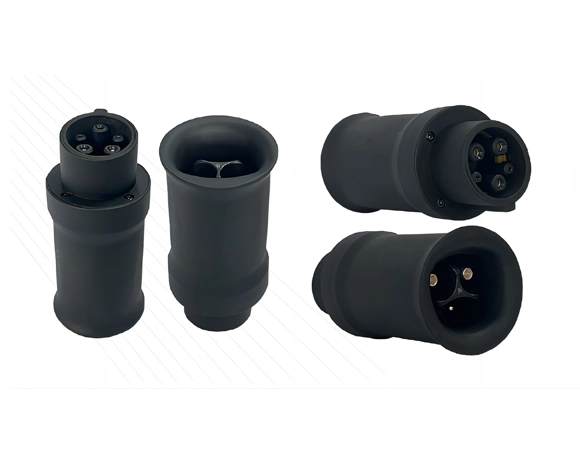

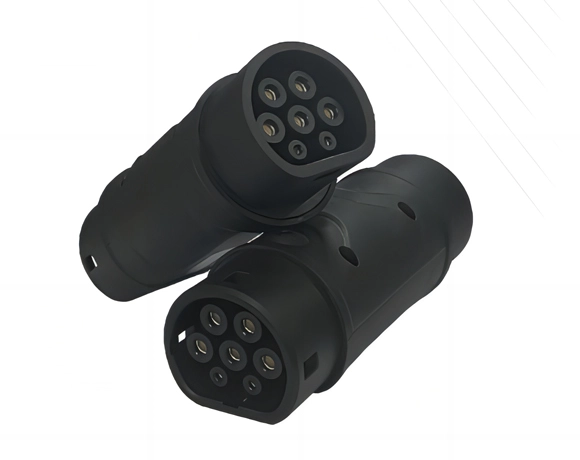

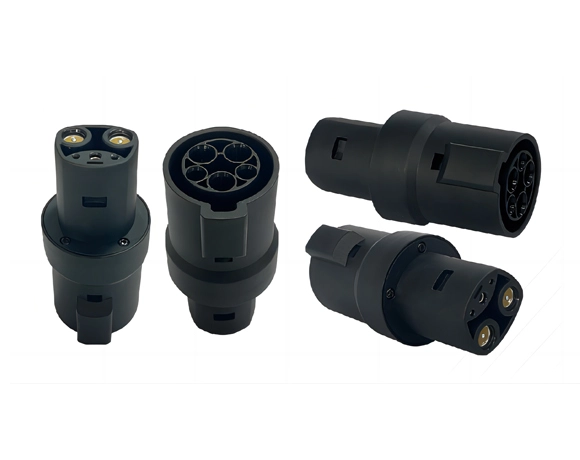

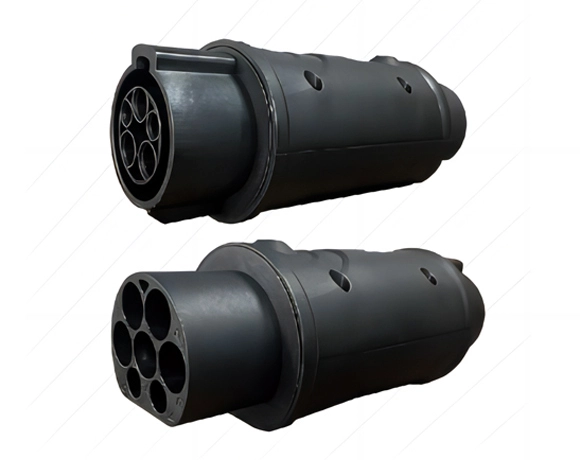

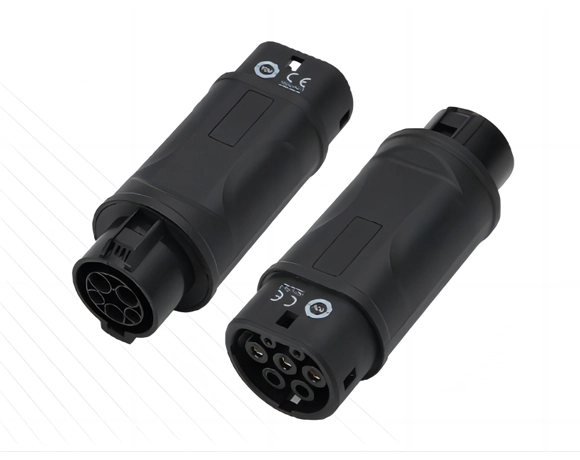

Yonggui has adapters with the following conversion formats:
Tesla-T1
T1-Tesla
GB/T-T2
T1-T2
T2-GB/T
T2-T1
T1-GB/T
| Electrical Performance | |
| Rated Current | 16A/32A |
| Operation Voltage | 110N /250V AC |
| Insulation Resistance | >1000MΩ(DC500V) |
| Contact Resistance | 0.5mΩ Max |
| Terminal temperature rise | <50K |
| Withstanding Voltage | 2000V |
| Mechanical Performance | |
| Mechanical life | Unloaded plugging and unplugging >10000 times |
| Coupling insertion force | 45<F<80N |
| Environmental performance | |
| Operating Temperature | -30℃ -+ 50℃ |
| Material Application | |
| Shell Material | Thermoplastic, Flame Retardant UL94-V-0 |
| Terminals | Copper Alloy, Silver Plated |
Tailoring connectors to your unique needs.
Provide systemic solutions
Respond to needs within 12 hours
