Comply with UL2251 requirements;
Passed UL certification;

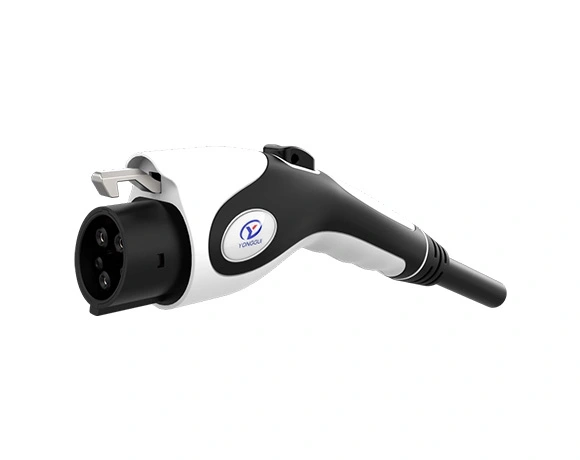

This type of charging connectors is ued for AC charging, applicable to AC charging pile of corresponding standard in North America.

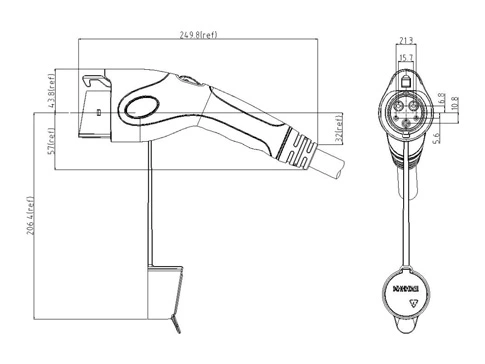

Overall dimensions

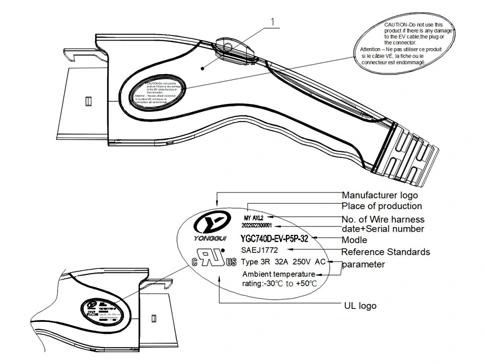

Certification mark
| Mechanical Properties | Life Cycles | ≥10000 Cycles | |
| Mating and Un-mating Force | ≤ 100N | ||
| Terminal Retention Force | ≥200N | ||
| Operation Environment | Protection Level | Unmated | IP44 |
| Mated | IP55 | ||
| Environment Temperature Range | -30℃~+50℃ | ||
| Material | Housing | PA66 or PC | |
| Terminal | Copper alloy，Silver plated | ||
| Sealing | Silicone rubber or elastomer | ||
| Flammability Rating | UL94-V0 | ||
| Standards | SAE J1772-2012 | ||
