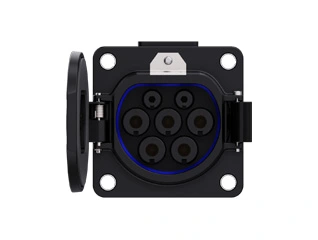

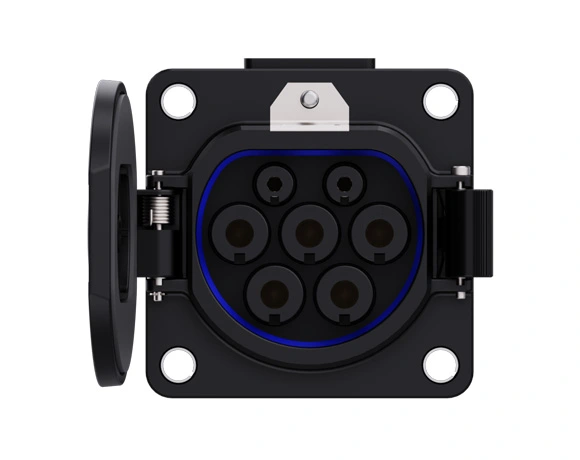

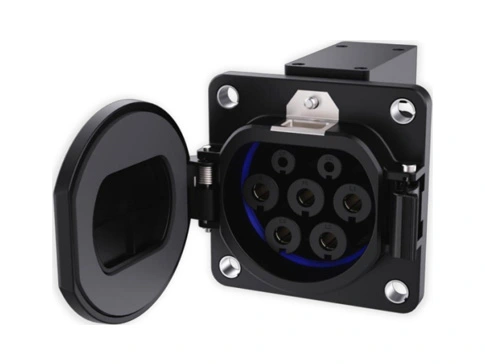

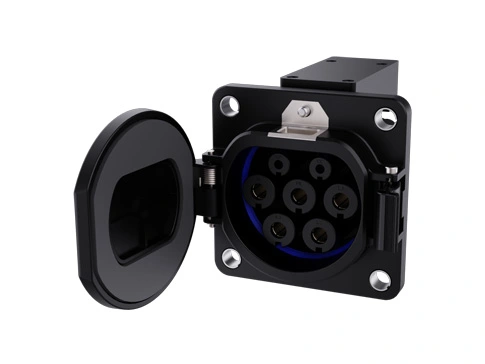

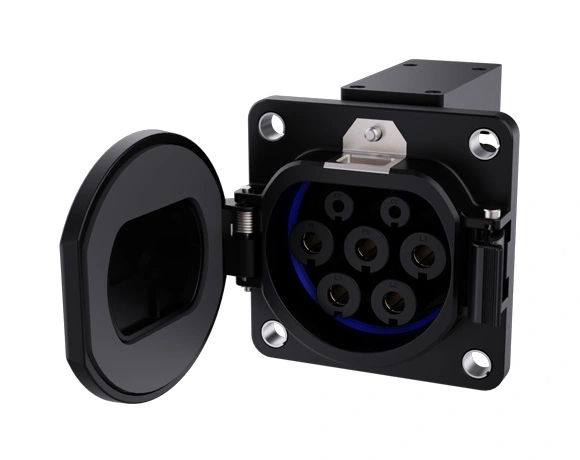

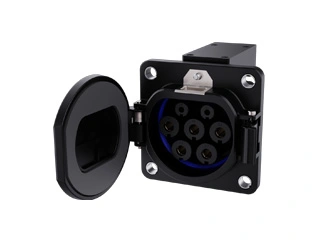

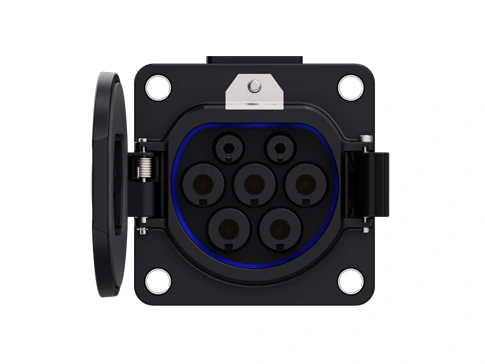

AC Vehicle Inlet GB

It meets the requirements of GB/T20234.1/.2;
Passed the Chinese national strong inspection certification;
Used for AC charging, applicable to electric vehicles with corresponding standards in China.

 Get Free Quote  PDF Download

Customization of AC Vehicle Inlet (GB)

The customer's logo.

The type and length of cable.

The protective cover has the following opening methods: left clamshell/right clamshell.

Project/Specification		10A Series		16A Series		32A Series
Type of power		Single-phase		Single- phase	Three- -phase	Single- phase	Three- -phase
Standard		GB/T 18487.1-2015 GB/T 20234.1-2015 GB/T 20234.2-2015
Mode		Mode2/3
Rated Voltage		250V AC		250V AC	440V AC	250V AC	440V AC
Rated Current		10A AC		16A AC	16A AC	32A AC	32A AC
Voltage Resistance		1.Any two of L1/L2/L3/N/PE≥2500V AC 1min; 2. Between CC/CP and L1/L2/L3/N/PE≥1 500V AC 1min; *Note: In the single-phase case, the test number 1 can be performed at a voltage of 2000V AC 1min.
Insulation Resistance		Any two ofL 1/L2/L3/N/PE/CC/CP≥500M2. *Note: The testing voltage is 1000V DC.
Degree of protection		Before insertion: IP54; After insertion: IP55 Electrical part: IP67 ( Except the interface with socket )
Cycles life		≥10000
Insertion/withdrawal force		<100N
Ambient temperature		-30°C ~ +50^C
The type of temperature controlled		1. Temperature sensor: PT1000/NTC
device(optional)		2. Temperature switch
Flame retardant rating		UL .94 V-0
Surface material of power contacts		Ag
OD of cable	Contact	Section specification	OD of cable	Section specification	OD of cable	Section specification	OD of cable
	L1/L2/L3 JustL1 when it's single -phase	2.5mm²	Ф2.5±0.15mm	2.5mm²	Ф2.5±0.15mm	6mm²	Ф4.9±0.15mm
	N	2.5mm²	Ф2.5±0.15mm	2.5mm²	Ф2.5±0.15mm	6mm²	Ф4.9±0.15mm
	PE	2.5mm²	Ф2.5±0.15mm	2.5mm²	Ф2.5±0.15mm	6mm²	Ф4.9±0.15mm
	CC/CP	0.75mm²	Ф1.8±0.1mm	0.75mm²	Ф1.8±0.1mm	0.75mm²	Ф1.8±0.1mm
